Air Compressor

TE-AC 430/50/10

Item no.:4010810EAN: 4006825672053
einhell-expert-air-compressor-4010810-productimage-101
einhell-expert-air-compressor-4010810-example_usage-101
einhell-expert-air-compressor-4010810-detail_image-101
einhell-expert-air-compressor-4010810-detail_image-102
einhell-expert-air-compressor-4010810-detail_image-103
einhell-expert-air-compressor-4010810-detail_image-104
einhell-expert-air-compressor-4010810-detail_image-105
einhell-expert-air-compressor-4010810-detail_image-106
einhell-expert-air-compressor-4010810-productimage-101
einhell-expert-air-compressor-4010810-example_usage-101
einhell-expert-air-compressor-4010810-detail_image-101
einhell-expert-air-compressor-4010810-detail_image-102
einhell-expert-air-compressor-4010810-detail_image-103
einhell-expert-air-compressor-4010810-detail_image-104
einhell-expert-air-compressor-4010810-detail_image-105
einhell-expert-air-compressor-4010810-detail_image-106

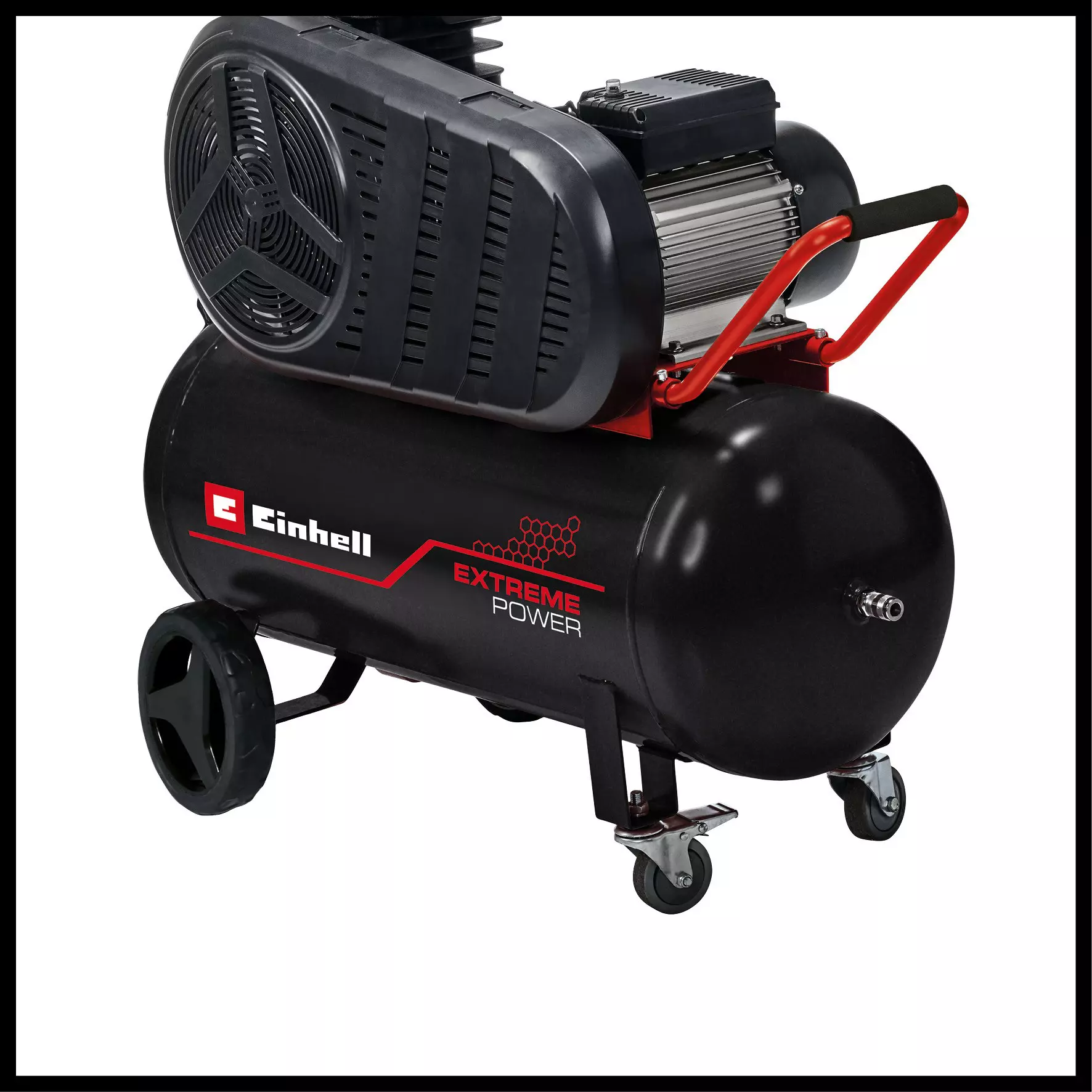

Air Compressor

TE-AC 430/50/10

Item no.: 4010810 EAN: 4006825672053
  • Powerful V-Belt-driven compressor
  • Belt drive ensures low speed and quiet operation
  • Durable thanks to oil-lubricated pump and high-quality components
  • Oil level check via sight glass
  • The 50 L tank holds plenty of air reserves
  • High air discharge & long service life thanks to two-stage compressor unit
  • Can be adapted for a range of applications up to 10 bar via pressure regulator
  • Pressure gauge and quick coupling for regulated working pressure
  • Pressure gauge and quick coupling for unregulated boiler pressure
  • 2 large wheels and 2 swivel castors with parking brakes
  • 10-year warranty against rusting of the pressure vessel
  • Non-return valve, safety valve
  • A drainage valve facilitates convenient maintenance
See more information
einhell-expert-air-compressor-4010810-productimage-101
Article description

With the Einhell compressor TE-AC 430/50/10 and the appropriate tools, you can apply paints and varnishes or impregnate large areas or specific woods in no time. With the 3,000-watt high performance V-belt driven compressor, you can unlock a whole new class of tools; the belt drive ensures low speed and quiet operation, and the 50 L tank provides air reserves for extended operations. The pressure regulator allows the pressure to be adjusted up to max. 10 bar to suit a range of applications, including compressed-air cleaning and sandblasting tasks. This all-rounder also easily inflates car, motorcycle and bicycle tyres, sports balls and air mattresses. The two-stage compressor unit, along with the belt drive, ensure a high output. The compressor is durable thanks to high-quality components and the oil-lubricated pump; a sight glass is provided for checking the oil level. Non-return and safety valves ensure safety while using the equipment. Pressure gauges and quick-coupling fittings are provided for the regulated working pressure and the unregulated tank pressure. Einhell is confident in its quality, and offers a ten-year guarantee against the boiler rusting through. Two large wheels and two swivel castors with a parking brake provide mobility and hold the unit securely in position. The compressor is equipped with a drain plug for convenient maintenance.

Technical details

Max. operating pressure10 bar
Motor speed2850 min^-1
Motor typeInduction motor
Number of cylinders2 pcs
Output power 0 bar230 l/min
Output power 4 bar210 l/min
Output power 7 bar200 l/min
Product weight56.4 Kg
Pump speed1020 min^-1
Sound pressure level (volume)73.5 dB (A)
Suction power430 l/min
Tank volume50 l

Need some fresh air?

Never run out of air with the Einhell compressor!

The Einhell Compressor TE-AC 430/50/10 has a powerful 3,000 W motor with a maximum speed of 2,850 rpm. The pump rotates at 1,020 rpm. With a maximum operating pressure of 10 bar and an intake capacity of 430 L/min, many tasks using compressed air become effortless. At the same time, the compressor operates quietly with a sound pressure level of 73.5 dB (LpA).

Need-some-fresh-air

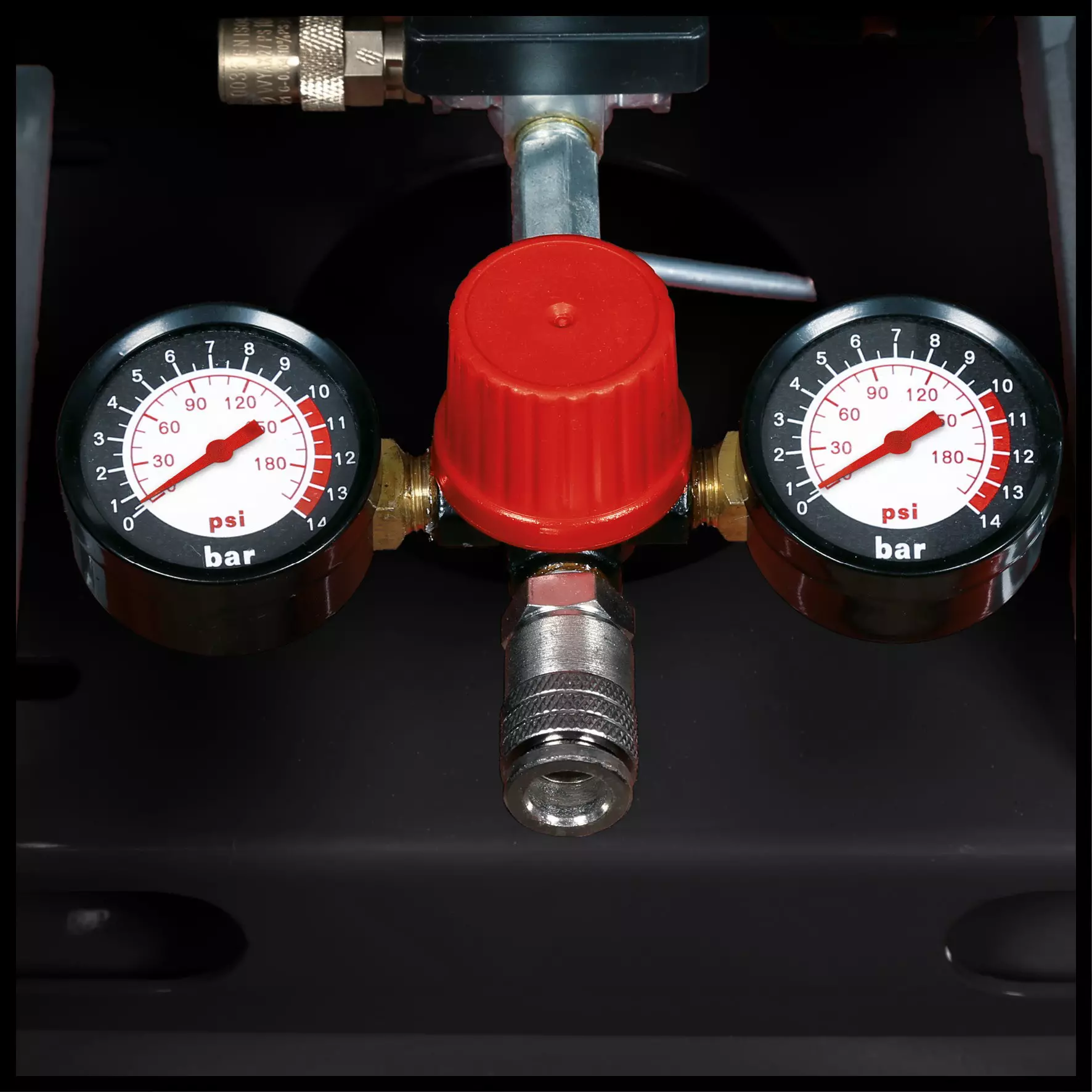

Working-pressure

Working pressure

A pressure gauge with quick coupling fitting provides a regulated working pressure. The pressure can be read from the gauge at any time.

Tank-pressure

Tank pressure

The unregulated tank pressure can be read directly from the pressure vessel of the device thanks to a pressure gauge with quick coupling.

Maintenance

Maintenance

When working with compressed air, condensation can accumulate. This can be easily emptied via the drainage plug.

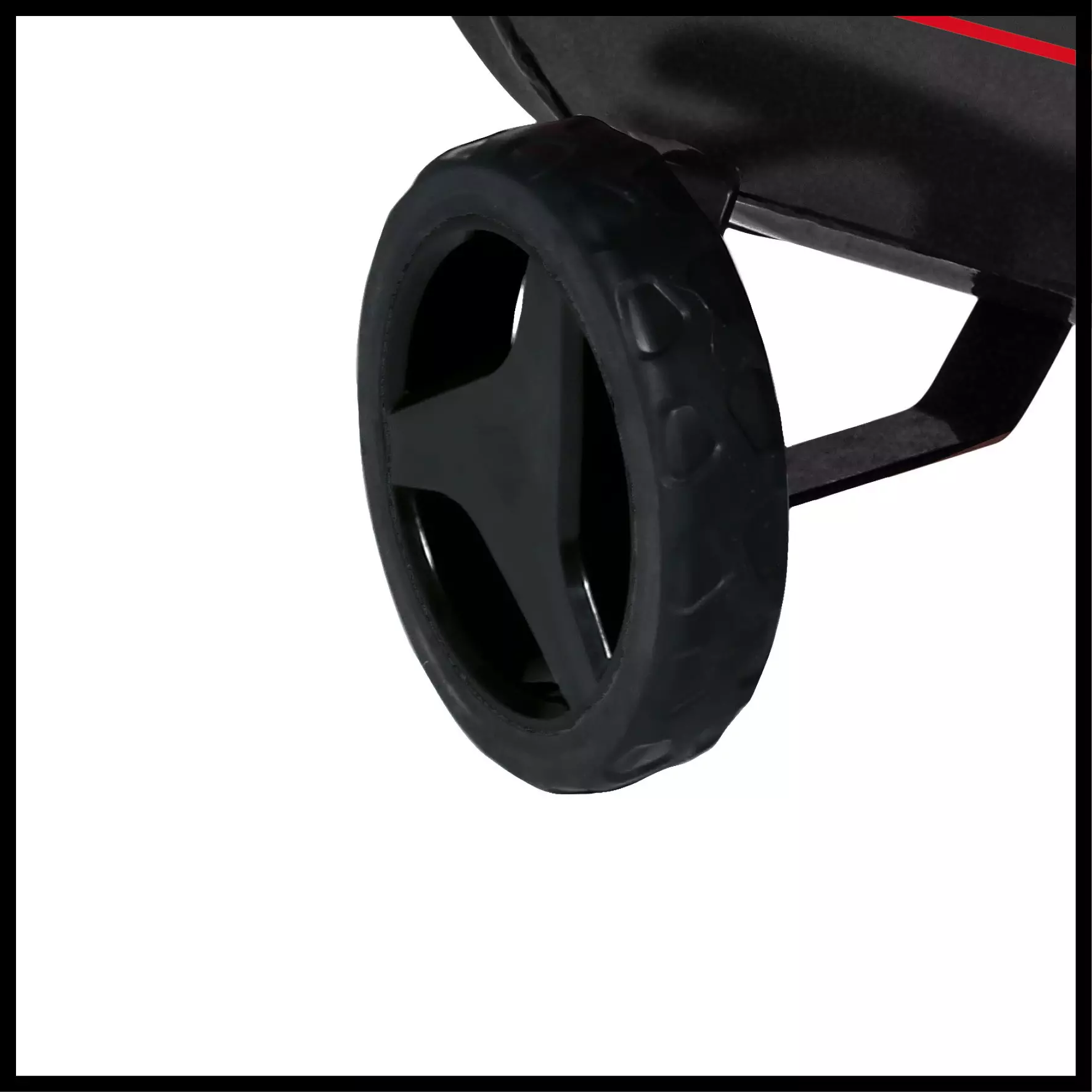

Portability

Portability

Two large wheels and 2 swivel castors ensure maximum mobility and flexible use. A brake holds the equipment firmly in place.

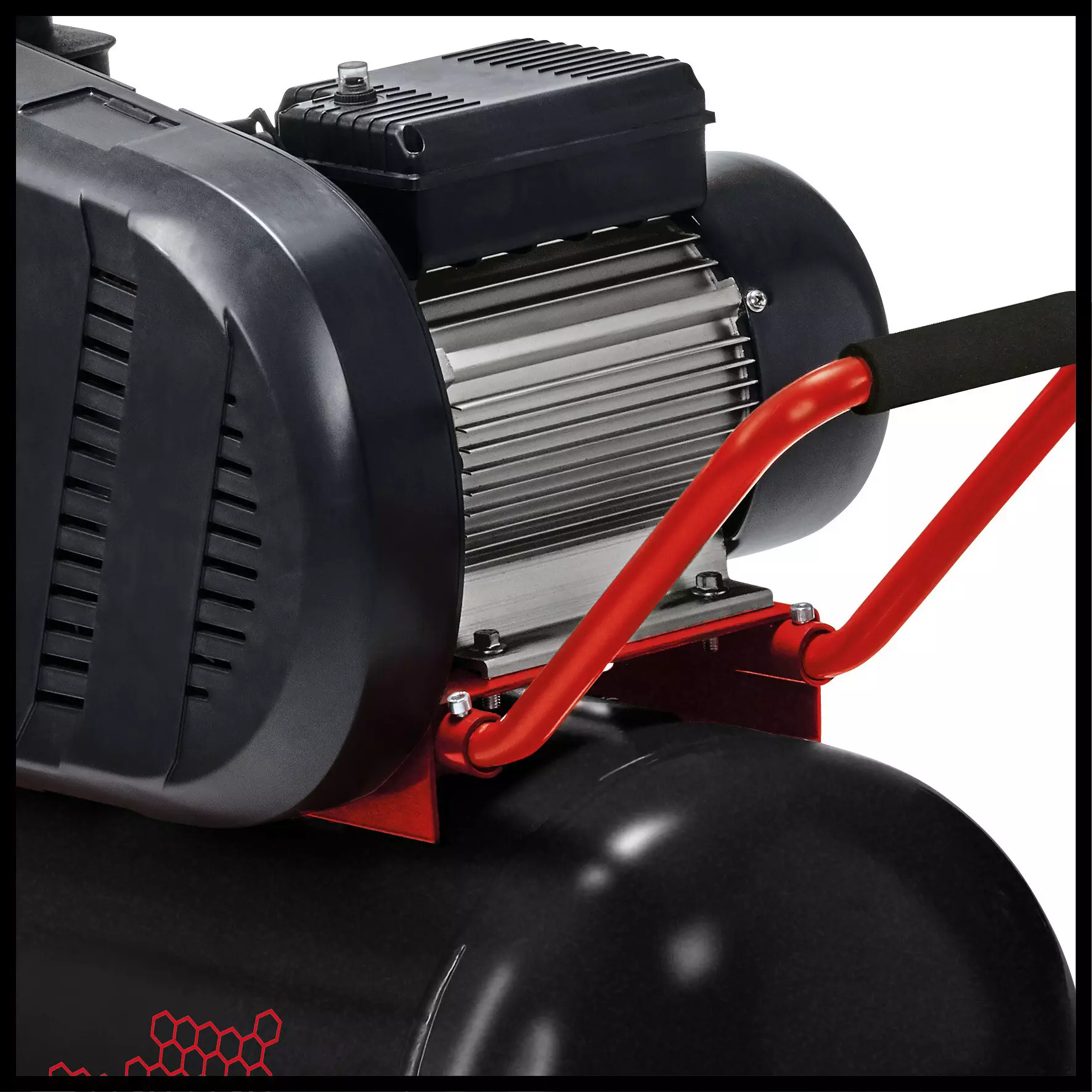

Quiet-belt-driven-operation

Quiet, belt-driven operation

This powerful and robust 3,000 W compressor with V-belt drive opens up a whole new class of tools. The belt drive ensures a low motor speed and thus enables quiet operation with a high air output.

Keeping-an-eye-on-the-oil-level

Keeping an eye on the oil level

Since the pump is lubricated with oil, a long service life and air capacity can be expected. So the Einhell Compressor is also perfectly suited for continuous operation. The oil level can be checked via a sight glass.
