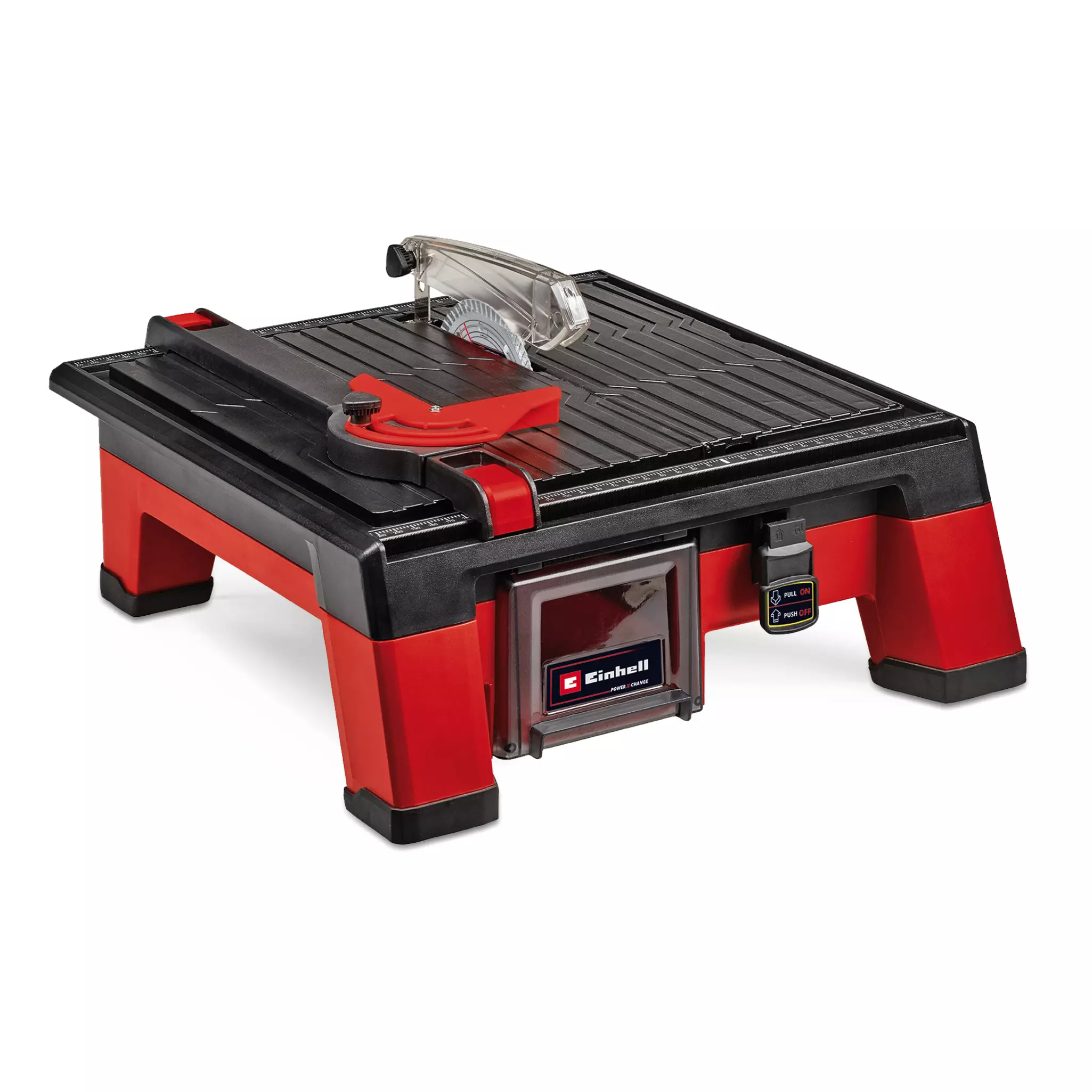

Cordless Tile Cutting Machine

TE-TC 18/115 Li-Solo

Item no.: 4301190EAN: 4006825657500

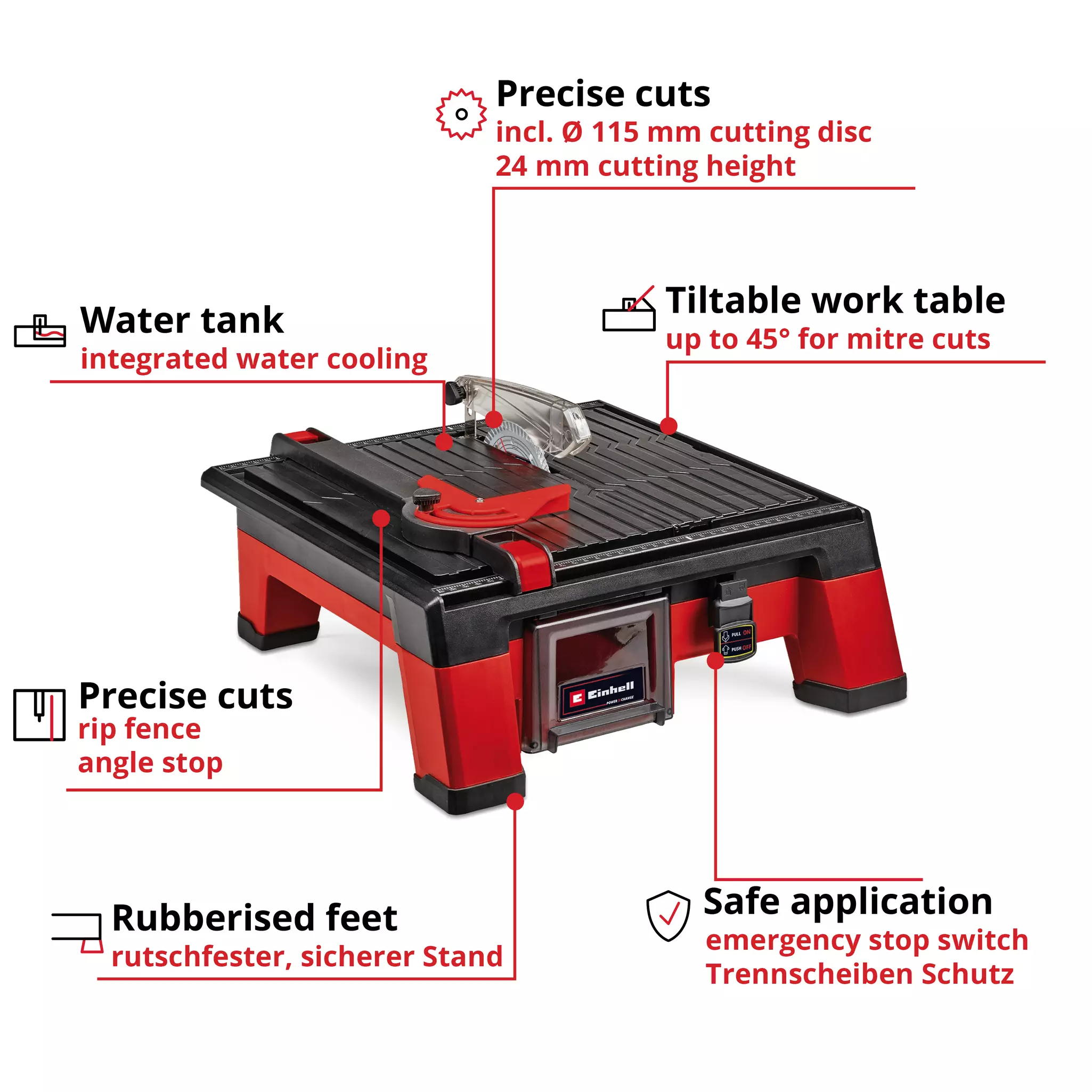

  • A member of the Power X-Change family
  • Flexible use everywhere due to battery motor and low weight
  • Tilting table with angle scale (0 - 45°)
  • Integrated water tank for cutting disc cooling
  • Non-slip and vibration rubber feets for secure hold
  • Parallel stop with angle scale for exact straight cuts
  • Adjustable (-45° - 45°) angle stop for mitre cuts

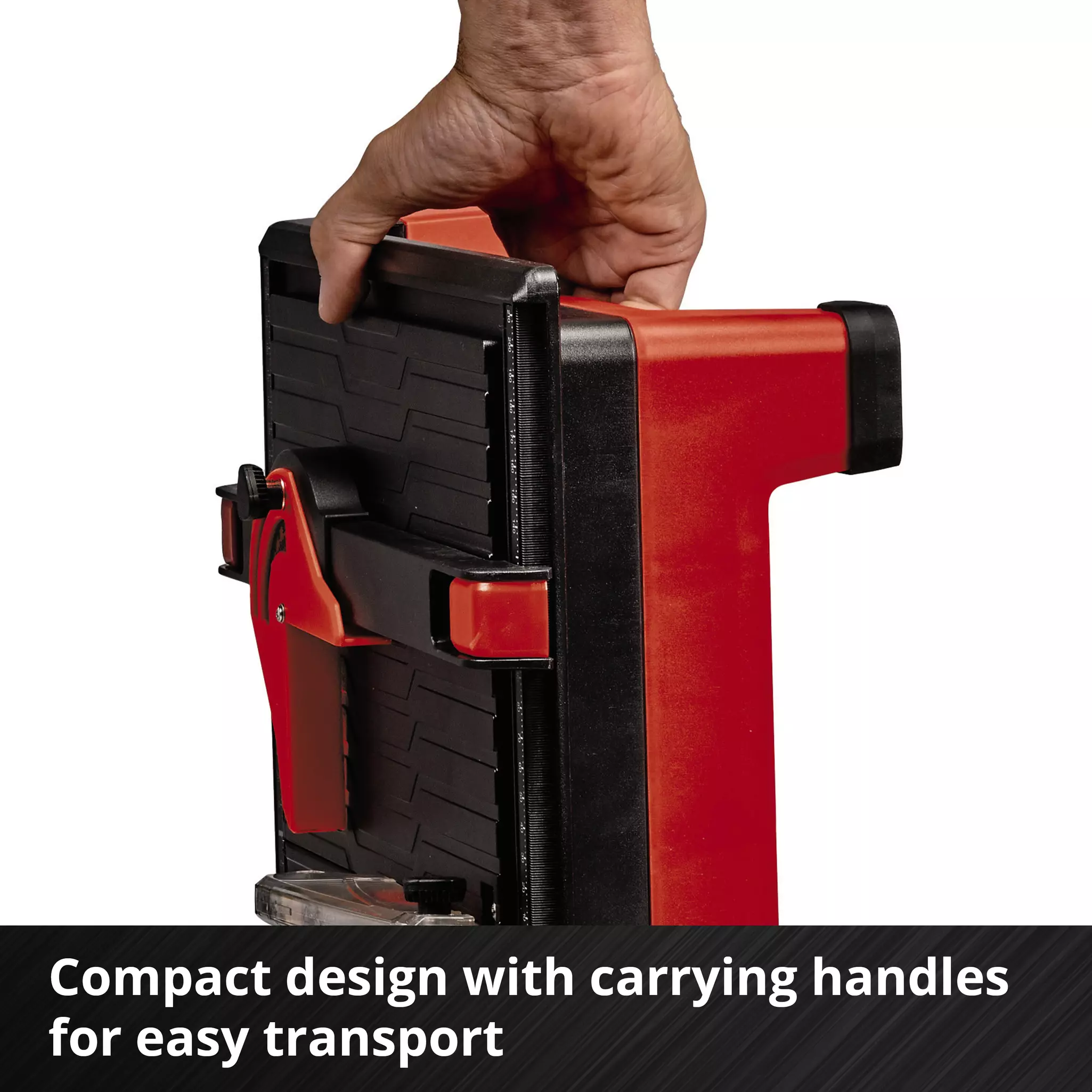

  • Carrying option for easy transport
  • A cutting wheel guard provides the necessary safety

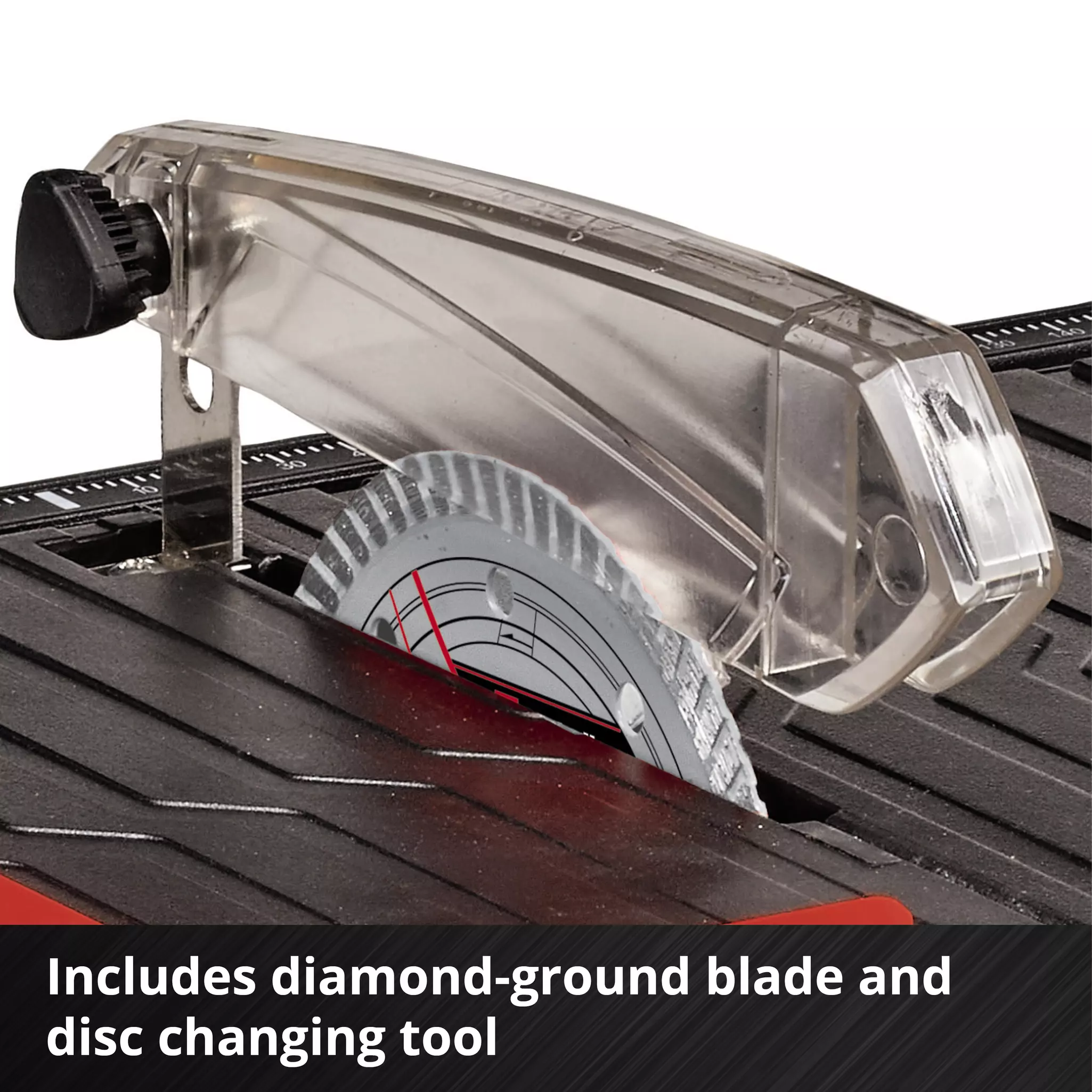

  • Complete with diamond cutting disc and a tool for changing

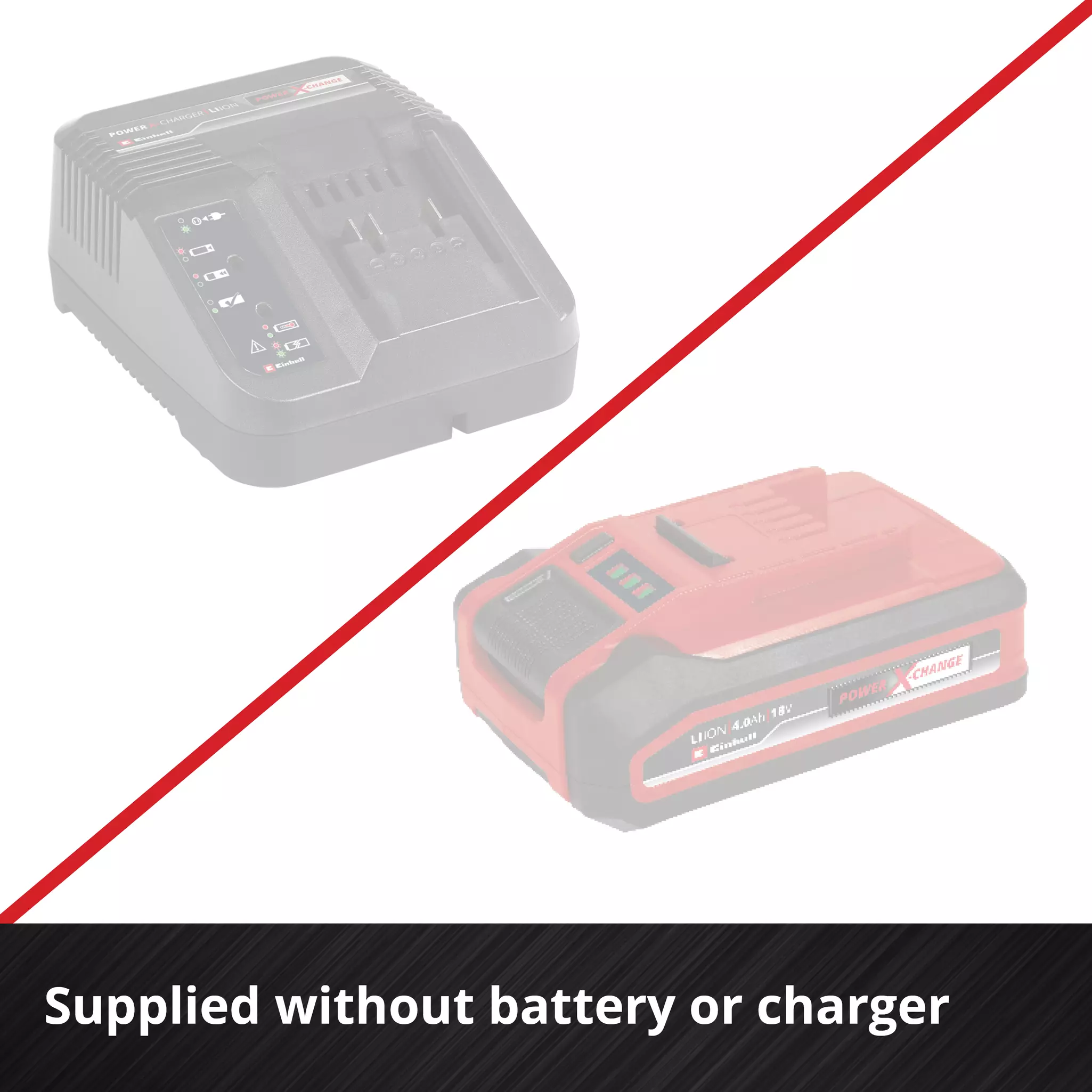

  • Supplied without battery and charger (available separately)
See more information
productimage
Article description

The Einhell TE-TC 18/115 Li-Solo tile cutting machine, being powered by a rechargeable battery from the high-performance Power X-Change family, is a “lightweight” among tile cutters and can be used with flexibility anywhere and everywhere – far away from any sources of electricity such as socket outlets or generators. The batteries with the high-grade lithium-ion cells can be combined with all members of the Power X-Change family. The rechargeable batteries from the Power X-Change series are available separately, e.g. as a practical starter set. The tile cutting machine has a table which can be tilted and which has an angle scale from 0° to 45°, plus an adjustable angle stop for miter cuts with settings from -45° to +45° degrees. The maximum cutting depth at 45° is 16 mm and at 90° it is 24 mm. The parallel stop with scale is for performing exact straight cuts. An integrated water container provides the cutting disc with sufficient cooling during cutting, and a cutting wheel guard provides essential safety. Non-slip, low-vibration feet ensure a secure and steady standing position. For mobility the low-weight cordless tile cutter has a carrying option The product is supplied complete with a diamond cutting disc and tool. The PXC rechargeable battery and charger are available separately.

Technical details

Angle stop max.60 °
Angle stop min.-60 °
Cutting disc diameter115 mm
Cutting disc holder diameter22.2 mm
Cutting height at 45°16 mm
Cutting height at 90°24 mm
Idle speed max.3800 min^-1
Max. swivel range (workbench)45 °
Min. swivel range (workbench)0 °
Motor typeBrush motor
Motor voltage18 V
Number of batteries included in delivery0 pcs
Number of chargers included in delivery0 pcs
Product weight3.5 Kg
Workbench length305 mm
Workbench width335 mm
full_width_image
full_width_image
full_width_image

Precise and dust-free

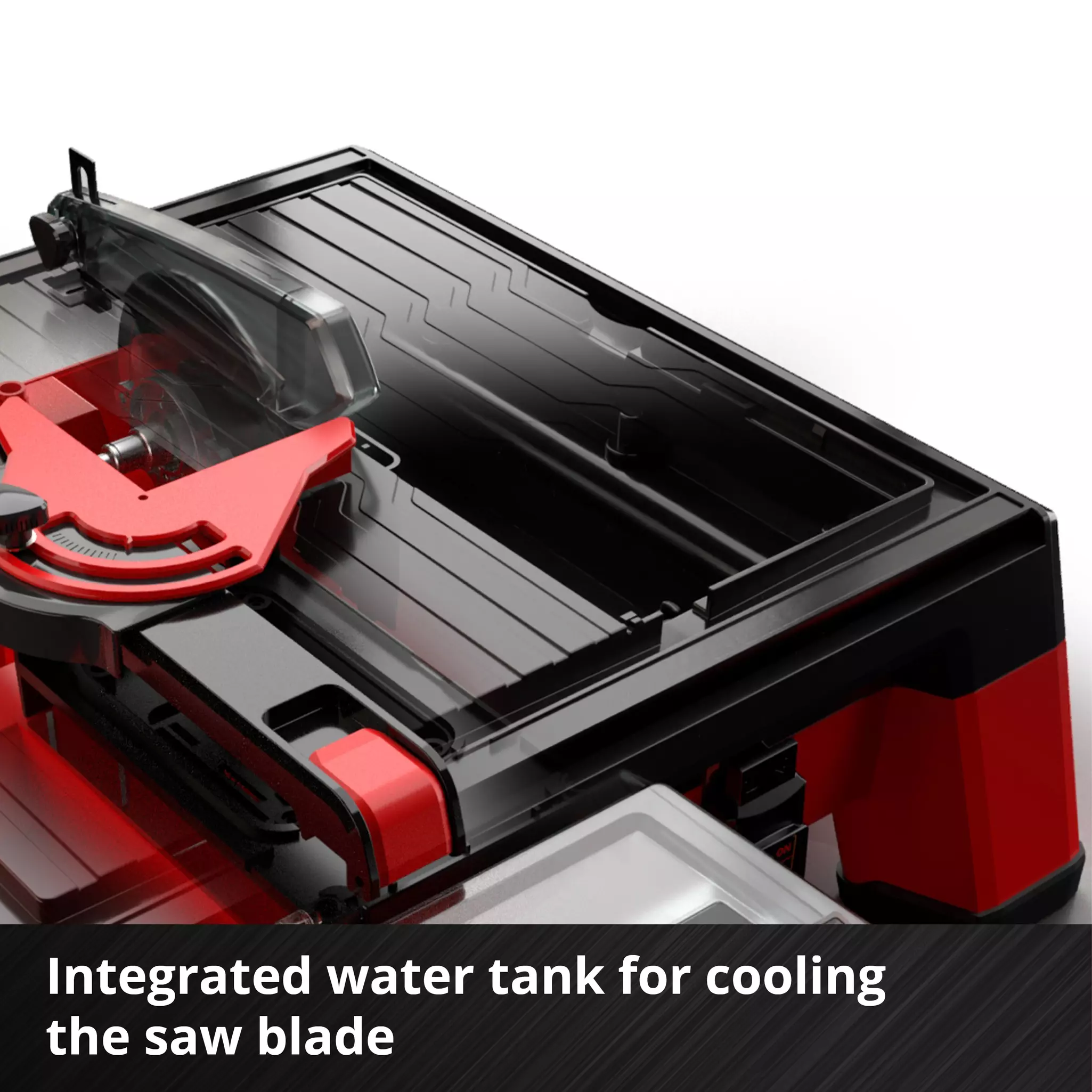

Tiltable workbench with water container

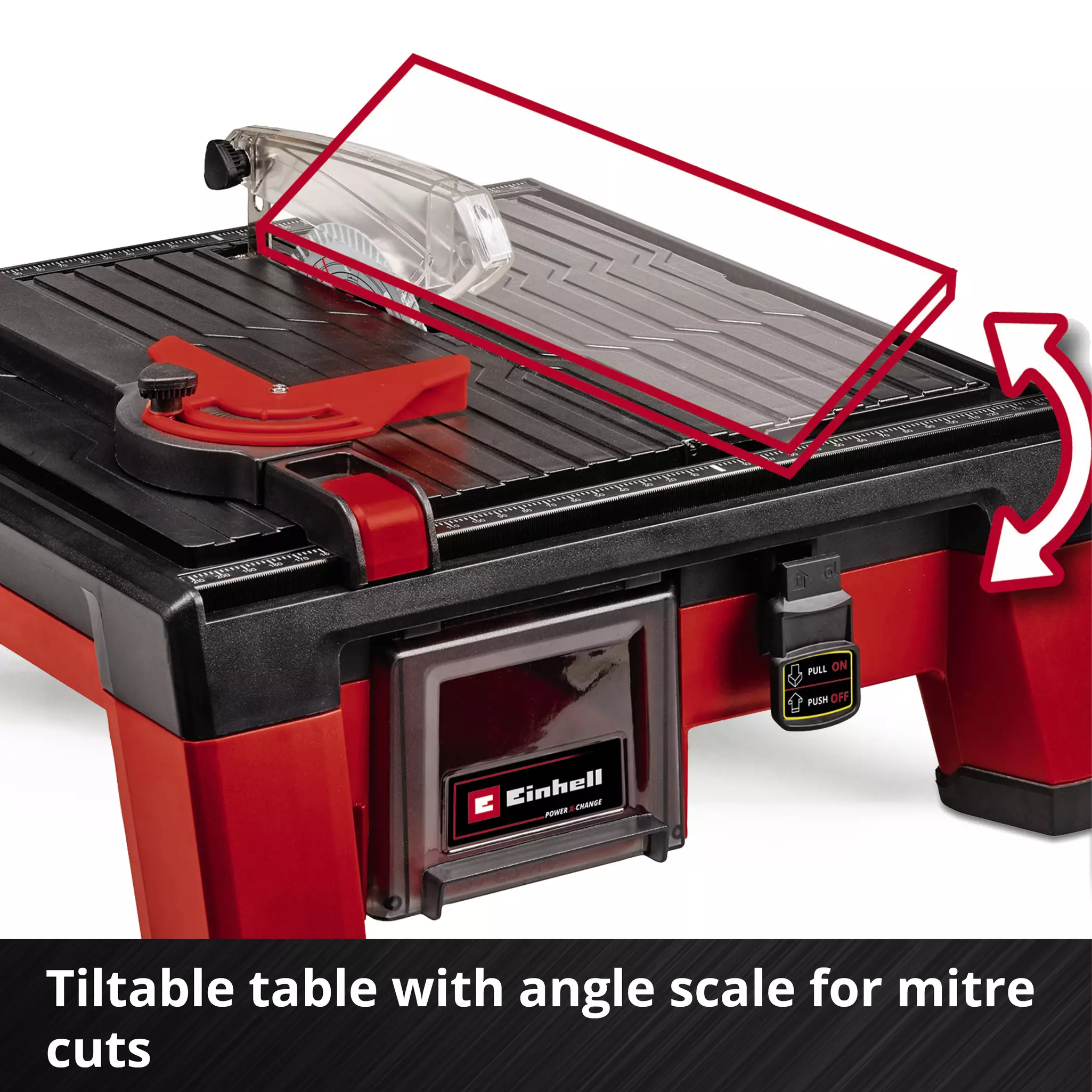

The Einhell cordless tile cutter TE-TC 18/115 Li-Solo is equipped with a work table that can be tilted from 0° to 45°, enabling even difficult mitre cuts to be made. The integrated water tank with minimum and maximum level indicator ensures effortless and clean results with a fine cutting view. The water from the container cools the saw blade and reduces dust generation.

Precise and dust-free
Safe use

Safe use

The cordless tile cutter is switched on at the side with the push of a button. The emergency stop switch also offers ultimate safety.

Fixed standing

Fixed standing

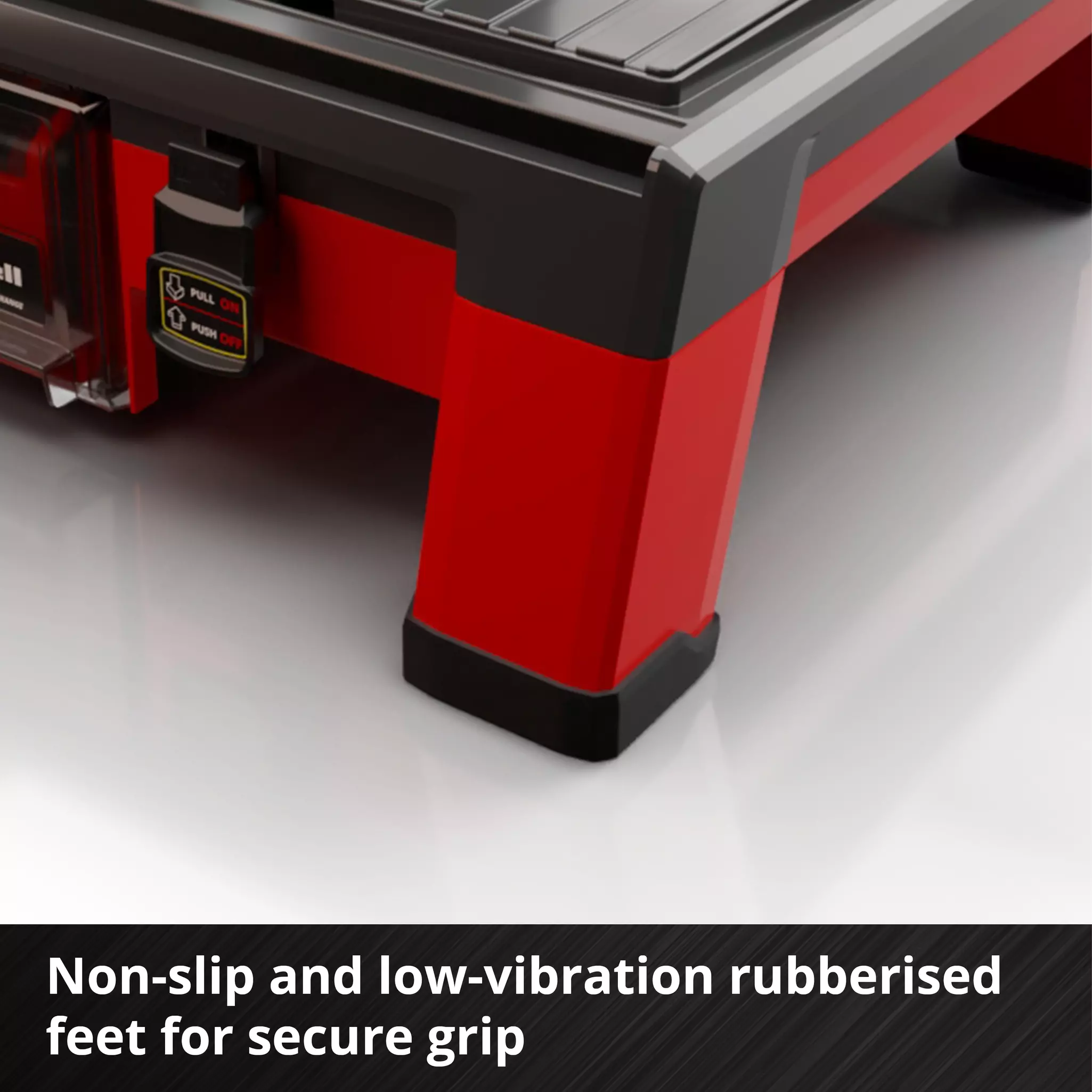

Non-slip rubber feet ensure low-vibration and secure standing when the tile cutting machine.

Practical protection

Practical protection

The integrated cutting disc protection offers the necessary safety and also protects against splashing water.

Precise cuts

Precise cuts

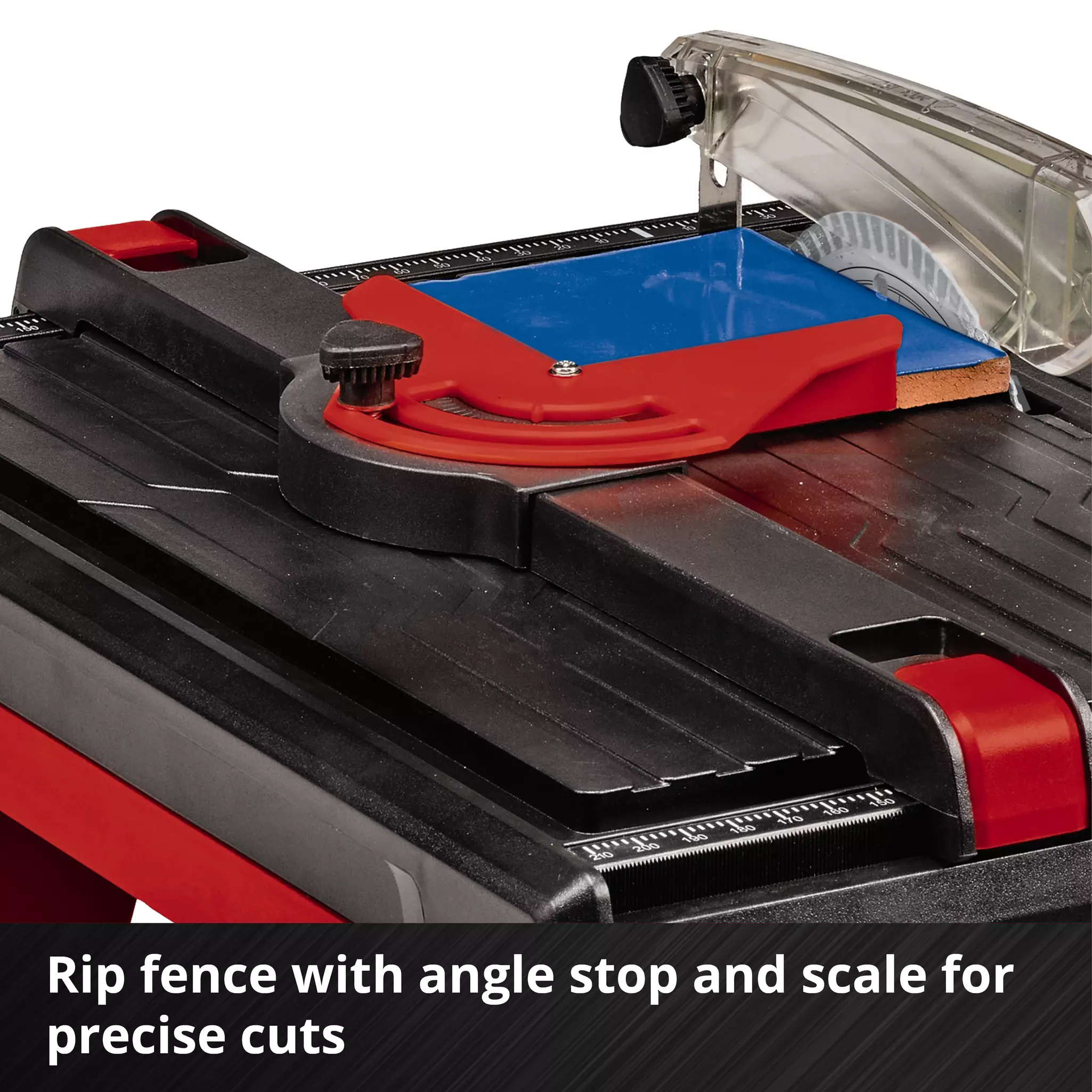

Perfectly straight cuts are possible with the parallel stop with scale and the individually adjustable angle stop.

Mobile and ready to use

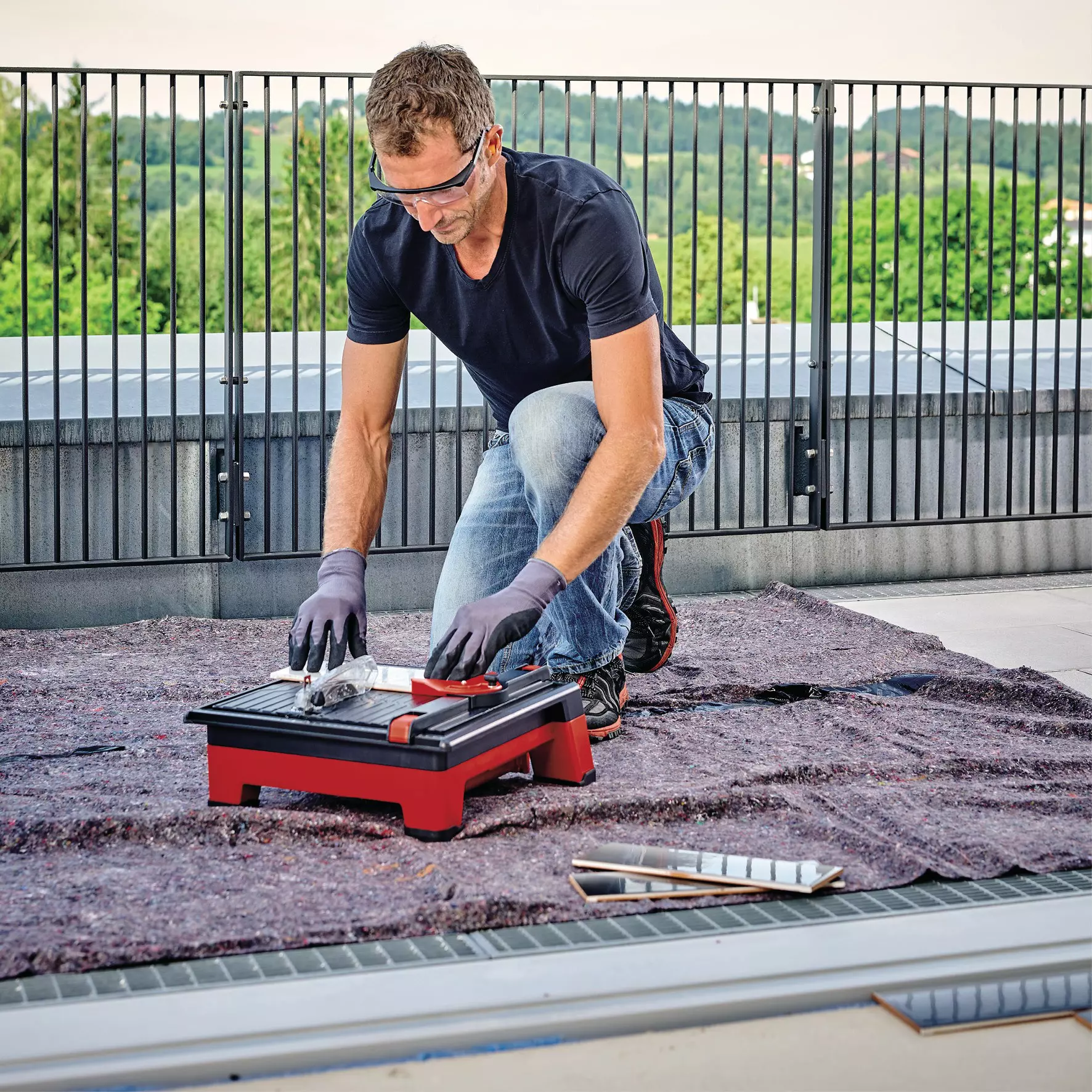

Flexibility on any construction site – with the Einhell cordless tile cutter

From the bathroom, to the basement, to the kitchen – with the Einhell cordless tile cutting machine TE-TC 18/115 Li-Solo, you can work more flexibly than ever before. Thanks to the Power X-Change battery, the compact tile cutter can be used anywhere on the construction site without having to rely on a power connection. This means that tiles can be cut and laid in no time. The compact device can be easily transported with the help of the carrying handles.

Mobile and ready to use
full_width_image
full_width_image
Einhell customer service can be reached directly. We take care of your requests for product information, spare parts and repairs.We support you with all questions around your product - before, during and after the purchase.
